A stiff mower lever, unresponsive throttle, or blade that fails to engage can often trace back to a small mechanical part: the control cable. In mechanical systems, a control cable transfers pulling or pushing motion from a handle, pedal, lever, or knob to a remote mechanism, allowing equipment to operate without rigid linkages.
Understanding how it works helps you choose, inspect, and maintain the right cable for lawn mowers, snowblowers, machinery, vehicles, and other outdoor power equipment control cable applications.
A mechanical control cable creates a motion path between the operator and the working component. The input may come from a handle, lever, pedal, knob, or control panel, while the output may act on a throttle, brake, clutch, choke, valve, blade control, or drive system. Instead of using a rigid linkage, the assembly lets designers place the control where it is easy to reach while the mechanism stays elsewhere on the machine.
A walk-behind mower gives a clear example. When the operator pulls the bail handle, the inner cable slides through the housing and transfers movement to the engine brake or blade control linkage. If the cable is stretched, loose, or poorly routed, the handle may move without creating enough travel at the engine.
Most pull-type cables work through tension. The operator pulls one end, and the inner wire pulls the remote linkage in the same force path. Return movement usually comes from a spring, gravity, or the mechanism itself, which is why many throttle, brake release, and blade control systems use pull-only designs.
Some systems need movement in both directions. A push-pull control cable uses a stiffer core and a more compression-resistant outer conduit so it can push as well as pull. Choke controls, valves, dampers, marine shift controls, and industrial actuators often need this more controlled two-way movement.
The inner wire rope or solid core is the moving member, but the outer conduit makes that movement useful. Once the conduit is anchored at both ends, the inner cable can slide while the housing stays still. Without a fixed housing, the entire assembly may shift instead of moving the load.
Smooth operation depends on friction drag, cable stretch, routing angle, minimum bend radius, dirt inside the conduit, corrosion, and damaged end fittings. A tight bend can make a lever hard to move, while a loose bracket can create lost motion before the mechanism reacts. If the outer conduit is not firmly mounted, the inner cable may move without transferring full force.
A pull-only control cable transmits force in one direction through tension. Once the operator releases the handle or lever, a return spring or the controlled mechanism moves the system back to its resting position. This design is simple, efficient, and common where the cable only needs to trigger or release a function.
Typical examples include a lawn mower blade control cable, small engine throttle cable, bicycle brake cable, hood release cable, and some brake or clutch cables. These applications do not require the cable to push the mechanism back. Even so, routing, cable stretch, and friction still determine whether the assembly can deliver full travel.
A push-pull assembly handles force in both directions. The inner core may be more rigid than a standard wire rope, and the outer conduit must resist compression so the system does not buckle under load. These assemblies appear in choke cables, valve controls, damper controls, marine throttle or shift systems, and industrial actuator cables.
The main advantage is precise two-way control without electronics, hydraulic lines, or rigid rods. A push-pull control cable can fit through a compact machine frame while still giving the operator direct mechanical feedback. Poor routing, however, can increase drag and reduce return accuracy.
A Bowden cable usually describes an inner cable sliding inside a flexible outer housing. Many Bowden-style assemblies are pull-only, which makes them excellent for flexible routing but unsuitable for compression. Confusing a Bowden cable with a true push-pull cable can lead to buckling, lost travel, or incomplete mechanism movement.
Outdoor power equipment uses both categories. A mower blade cable may only need pulling action, while a choke or drive control may require stronger construction. Snowblower auger cables, drive cables, tiller clutch cables, and brake cables all depend on the correct force direction.
The inner cable is the moving part that carries the mechanical load. It may be a stranded wire rope for flexibility or a solid wire core for stronger push-pull behavior. Galvanized steel is common for cost-effective corrosion resistance, while stainless steel is better for moisture, salt, or chemical exposure.
Cable construction changes performance. A 7×19 wire rope is generally more flexible, while a 7×7 construction balances strength and flexibility. A stiffer core can improve compression performance, but it may require a larger bend radius and more careful routing.
The outer conduit guides and protects the moving core. It also resists compression, keeps the cable path stable, and allows routing around obstacles. Common designs include vinyl-covered conduit, flat-wound conduit, braided reinforced conduit, and housings with an HDPE liner to reduce internal friction.
A low-friction liner can make a major difference in outdoor power equipment. Grass debris, moisture, fertilizer residue, mud, and storage humidity can increase drag over time. Better liner quality helps the inner cable move smoothly and reduces binding.

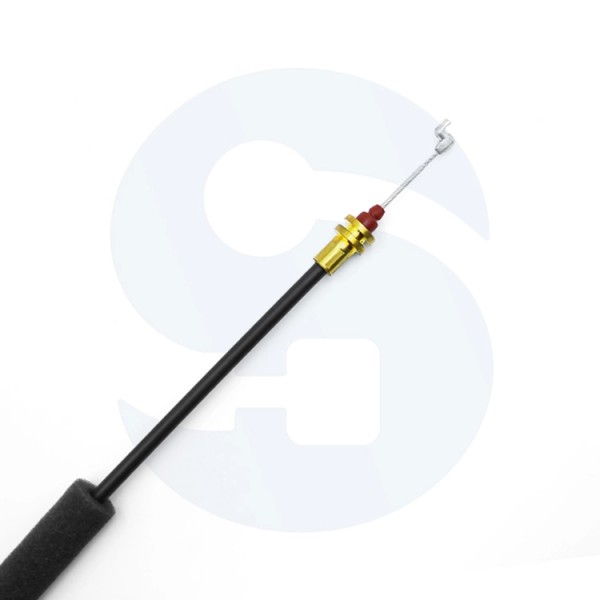

End fittings connect the cable to the control and the mechanism. Common choices include Z-bends, ball ends, clevises, eyelets, threaded studs, stop sleeves, T-handles, and knobs. The geometry of these fittings matters as much as cable length because a slightly wrong angle or diameter can prevent full movement.
Mounting clips, brackets, and guides hold the outer conduit in place. If a bracket is missing or loose, the assembly may create lost motion before the inner cable moves the linkage. That small error can make a throttle feel vague, a brake release incomplete, or a blade control unsafe.
The first step is identifying what the control cable actually controls. A throttle, brake, blade engagement system, choke, drive system, clutch, valve, or damper may each require a different force direction, travel distance, and connection style. Choosing by appearance alone is risky because two assemblies can look similar but behave differently under load.
A pull-only design is suitable for one-way actuation with spring return. A push-pull design is better when the mechanism must move in both directions without relying entirely on an external spring. In outdoor power equipment, a mower blade cable may only need pull action, while a choke, valve, or some drive controls may need more controlled travel.
A replacement control cable must match more than total length. Overall cable length, housing length, exposed cable length, stroke length, and cable travel all influence whether the controlled part reaches its full operating range. If travel is too short, a blade may not disengage properly, a throttle may not reach full range, a drive system may not engage, or a choke may remain partly closed.
End fitting compatibility is equally important. Check the Z-bend angle, ball end size, clevis width, threaded stud length, clip position, bracket style, and both handle-side and engine-side connection points. Incorrect fittings create poor alignment, extra friction, lost motion, and a higher risk of malfunction in safety-related systems.
A good cable choice accounts for load requirement, minimum bend radius, friction drag, cable stretch, vibration, heat exposure, abrasion, moisture ingress, and corrosion resistance. Routing should avoid sharp bends, hot engine parts, rotating components, and places where the outer sheath can rub against a frame edge. Outdoor equipment also faces grass debris, mud, rain, fertilizer exposure, UV light, storage humidity, and freeze-thaw cycles.
Material choice should follow the environment rather than the cheapest price. Galvanized steel is suitable for many general-duty applications, while stainless steel makes more sense in wet, salted, marine, or high-corrosion conditions. HDPE-lined conduit improves movement in longer or curved routing paths, and reinforced conduit helps where compression resistance or higher loads are required.
Control Cable Selection Checklist
● Identify the equipment model and part number.
● Confirm whether the system needs pull-only or push-pull movement.
● Measure overall cable length, housing length, and exposed cable length.
● Confirm stroke length or cable travel.
● Match both end fittings and mounting brackets.
● Review the routing path and minimum bend radius.
● Choose material based on moisture, corrosion, workload, and outdoor exposure.
A failing control cable usually shows up as poor response, stiff movement, incomplete travel, or failure to return. The handle may feel heavy, the throttle may not respond, the blade may fail to engage or disengage, or a self-propelled mower may stop driving even though the engine runs normally. Visible warning signs include frayed wire, rust, kinks, cable stretch, a cracked outer sheath, melted housing, or a separated end fitting.
Common causes often build up gradually. Internal corrosion increases friction inside the conduit, while dirt and grass debris can collect near exposed ends and work into the housing. Moisture ingress is especially damaging on snowblowers and stored equipment because water can freeze, expand, and make the cable seize.
Symptom | Likely Cause | What to Inspect | Recommended Action |
Lever feels stiff | Friction, corrosion, tight bend | Conduit, routing, exposed wire | Clean, lubricate, or replace |
Cable does not return | Binding, weak spring, kink | Return spring, cable path, brackets | Adjust or replace |
Throttle does not respond | Loose or stretched cable | Cable travel, end fittings | Adjust or replace |
Blade control fails | Stretched or broken cable | Bail handle, blade control linkage | Replace immediately |
Cable freezes | Moisture inside conduit | Ends, cracks, storage conditions | Dry, protect, or replace |
Lubrication may help when movement is slightly dry or rough, the inner wire is not frayed, the outer conduit is not cracked, and the cable still moves through its full travel. Adjustment may solve a loose cable if the mechanism does not reach full travel and the tension can be corrected safely. A minor tension issue on a throttle cable is very different from a damaged blade or brake cable.
Replacement is safer when the inner wire is frayed, the assembly is rusted or seized, the outer conduit is cracked or crushed, or an end fitting is bent, loose, or detached. Safety-related controls should be replaced before they fail completely. Outdoor power equipment should also be inspected before mowing or snowblower season, with debris cleaned from exposed linkages and cables kept away from hot engine parts.
A control cable may look simple, but its fit, routing, stroke, fittings, and material choices determine how reliably a mechanical system responds. Whether used as an outdoor power equipment control cable or in a broader machine assembly, the right design helps reduce stiffness, lost motion, corrosion, and premature downtime.
Dong Guan SumHo Control Cable Co., Ltd. supports these practical needs with mechanical cable assemblies designed around real operating conditions, from inner wire and conduit construction to end fittings and adjustment details, helping equipment move smoothly and safely over its service life.
A: A control cable transfers mechanical motion from a handle, lever, pedal, or knob to a remote part, such as a throttle, brake, clutch, choke, valve, or blade control.
A: It works by moving an inner wire through a fixed outer conduit. The inner cable pulls or pushes the mechanism while the conduit holds the cable path stable.
A: A pull-only cable transmits force in one direction, usually with spring return. A push-pull cable can transmit force in both directions for more controlled movement.
A: An Outdoor Power Equipment Control Cable is commonly used in lawn mowers, snowblowers, tillers, and small engines to control throttle, blade engagement, drive systems, brakes, or chokes.
A: Common signs include stiff lever movement, poor throttle response, incomplete travel, failure to return, frayed wire, rust, cracked housing, or a loose end fitting.
A: Minor stiffness may improve with cleaning, lubrication, or adjustment. Replace the cable if it is frayed, seized, stretched, cracked, corroded, or linked to a safety function.
