How Does A Bowden Cable Work​

Introduction

A brake lever, throttle, clutch, or hood release often needs to control a part that sits far away and out of line with the operator’s hand or foot. A bowden cable makes that possible by sending mechanical force through a flexible path, using a moving inner wire inside a fixed outer housing.

Understanding how it works helps explain why some cables feel smooth and precise, while others become stiff, loose, or delayed. The key lies in cable tension, housing support, routing, friction, and proper adjustment.

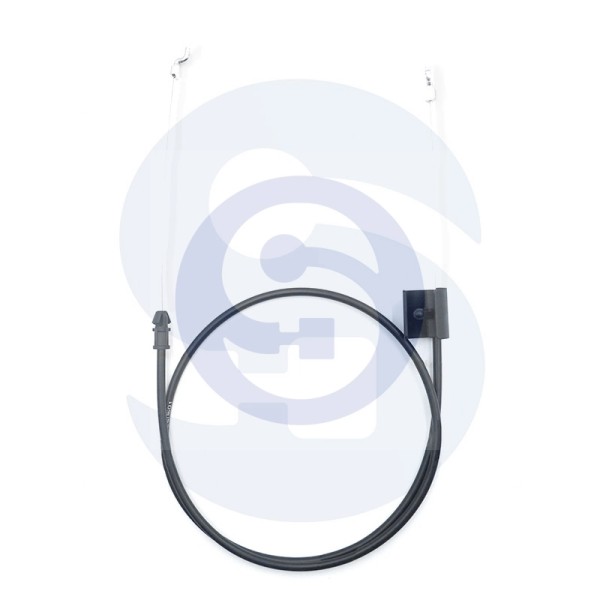

How a Bowden Cable Works: Inner Wire, Outer Housing, and Fixed Cable Stops

A Bowden cable works by separating two jobs: the inner wire moves, while the outer housing stays fixed. This is the key to the whole mechanism. The inner wire carries the pulling force, and the outer housing provides a stable path for that force to travel through, even when the cable bends around a frame, engine, handle, door panel, or machine bracket.

Pulling the Inner Wire Creates the Motion

The inner wire, also called the wire rope core, is the part that actually moves. When a user pulls a brake lever, presses a pedal, turns a control knob, or operates a throttle handle, that action pulls the inner wire through the housing.

That pulling movement is transferred to the other end of the cable. For example, in a handbrake cable, pulling the lever draws the inner wire forward and applies force to the brake mechanism. In a lawn mower throttle cable, moving the control lever pulls the inner wire and changes the throttle position.

A standard Bowden cable is mainly designed for pulling force. The wire works well in tension because it can bend while still carrying load. However, a flexible wire cannot reliably push through a curved housing, because it may buckle or lose force. When motion is needed in both directions, a push-pull cable or return spring is usually used.

The Outer Housing Holds the Cable Path in Place

The outer housing is not just a protective cover. It is the fixed guide that allows the inner wire to move in a controlled way. The housing usually includes a reinforced structure, such as helical winding or flat wire spiral reinforcement, plus an outer jacket and sometimes a low-friction liner.

When the inner wire is pulled, it naturally tries to straighten the cable path. The outer housing prevents that from happening. Because the housing is seated firmly at both ends, it keeps the cable path length stable. As a result, the movement created at the control end is delivered to the actuator end instead of being lost inside the cable assembly.

This is why a Bowden cable can work around corners. The cable does not need a straight line between the lever and the controlled part. As long as the housing stays fixed and the inner wire can slide smoothly, the pulling force can follow a curved route.

Fixed Cable Stops Make the Force Useful

Cable stops, brackets, or anchor points hold the ends of the outer housing in place. These parts are essential because the housing must react against a fixed structure. If the housing is loose, cracked, compressed, or not seated correctly, part of the lever movement will be wasted.

This wasted movement is often felt as slack, delayed response, or weak control. A brake lever may pull too far, a throttle may respond slowly, a clutch cable may not disengage fully, or a latch release may fail to open cleanly. In many cases, the cable itself is not the only problem; poor housing seating, damaged ferrules, or loose brackets can reduce the force reaching the working end.

A simple way to understand it is this: the inner wire does the moving, but the outer housing makes that movement useful. Both parts must work together for the Bowden cable to transfer force accurately.

Main Bowden Cable Components and Materials That Affect Performance

Inner Wire or Wire Rope Core

The inner wire carries the pulling load, so construction affects flexibility, strength, corrosion resistance, and fatigue life. Multi-strand steel wire bends smoothly and distributes stress across many small strands. Galvanized steel suits cost-sensitive applications, while stainless steel is better where moisture, road salt, marine air, or outdoor exposure are likely.

Material choice should match the working environment, not only the purchase price. A low-cost wire may be acceptable indoors, but it can corrode quickly under a vehicle body or near agricultural debris. For safety-critical controls, visible fraying or broken strands are replacement signals, not lubrication problems.

Outer Housing, Liner, and Protective Jacket

The outer housing guides the wire and resists compression, while the liner reduces sliding friction between the wire and housing wall. Better housings may use flat wire spiral reinforcement, helical winding, a PTFE liner, and a coated jacket against water, dust, oil, or abrasion. In a bowden cable assembly, these layers determine how light the control feels and how much input force is lost along the route.

Routing and material work together. A smooth liner cannot fully compensate for a sharp bend, and a strong housing cannot prevent stiffness if dirt enters the sliding path. Outdoor power equipment, motorcycles, marine hardware, and industrial machinery often benefit from sealed or lined housings.

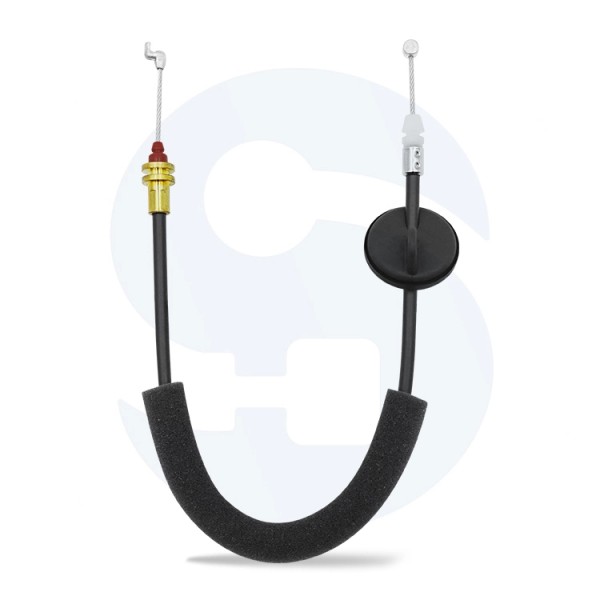

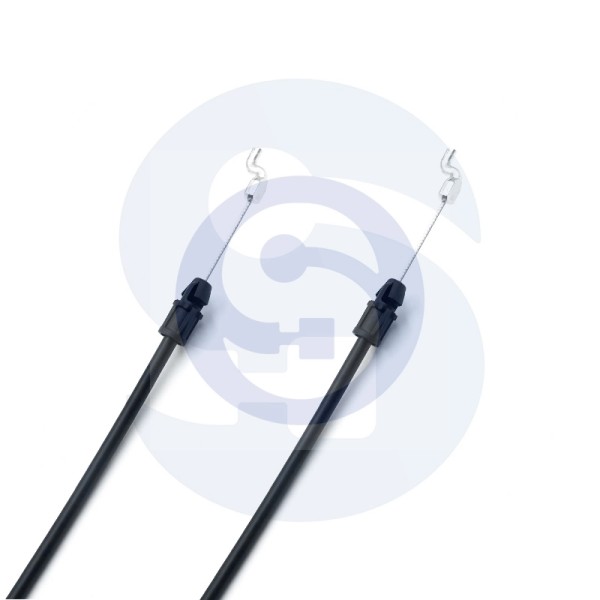

Ferrules, End Fittings, and Barrel Adjusters

Ferrules sit at the housing ends and help keep the sheath aligned inside the cable stop. End fittings such as nipples, threaded ends, pull eyes, hooks, and custom terminals connect the inner wire to the lever or actuator. A mismatched fitting can create side loading, premature wear, or incomplete motion even when the length is correct.

A barrel adjuster fine-tunes tension by changing the effective housing length. Turning it outward usually removes slack, while turning it inward reduces tension and restores adjustment range. Over-adjustment can hide deeper problems such as fraying, corrosion, a kinked housing, or a weak return spring.

Why a Bowden Cable Feels Stiff, Loose, or Delayed

Bend Radius and Routing Geometry

Bend radius is the size of the curve that the cable follows. A wide curve lets the inner wire slide with less contact pressure, while a tight bend increases friction and wear inside the housing. Even a high-quality bowden cable can feel stiff if it is routed through sharp turns, pinched brackets, or crowded frame openings.

Good routing is a performance decision, not just a packaging decision. Keep curves smooth, avoid heat sources, prevent crush points, and protect the housing from edges that can cut the jacket. Installers should also check whether bowden cable routing changes as a handlebar, suspension, steering assembly, or machine linkage moves.

Friction, Slack, and Lost Motion

Friction occurs wherever the inner wire slides against the liner, especially at bends and contaminated sections. Slack is free movement before the actuator begins to move, while lost motion is input travel that disappears due to housing compression, poor seating, worn ferrules, or stretch. Friction feels heavy or gritty; slack feels loose, delayed, or spongy.

Several causes can overlap in one system. A stretched inner wire may require barrel adjustment, but a dirty liner can still make the lever slow to return. Delayed throttle response, excessive brake lever travel, inaccurate shifting, or slow return should be diagnosed by checking the whole control path.

Corrosion, Fraying, and Housing Damage

Corrosion usually starts where water, salt, or dirt can enter the housing or collect near end fittings. Once rust forms on the inner wire, the rough surface increases friction against the liner. Fraying is more serious because broken strands can catch inside the housing, cut the liner, or reduce tensile strength.

Harsh environments deserve stricter inspection intervals. Marine use, automotive underbody routing, motorcycles exposed to rain, outdoor power equipment, and agricultural machinery combine moisture, vibration, grit, and temperature change. For brakes, throttles, clutches, and other safety-critical controls, replacement is safer than trying to rescue a visibly damaged bowden cable with lubricant.

How to Select, Adjust, or Replace a Bowden Cable

Select Based on Load, Travel, and Frequency

The right bowden cable should be selected around the job it must perform. Required pull force, stroke length, actuation speed, operation frequency, and safety importance all affect the specification. A bicycle shifter cable, handbrake cable, mower throttle cable, and industrial control cable may look similar, but their loads and duty cycles differ.

Stroke length is easy to overlook. The actuator must receive enough linear movement to fully open, close, release, brake, or engage the controlled part. Custom assemblies should specify total length, housing length, exposed wire length, fitting style, thread size, and expected travel.

Choose Materials Based on Environment

Environmental exposure should guide material selection. Galvanized steel can suit basic cost-sensitive use, while stainless steel is usually better for wet, corrosive, or outdoor conditions. A PTFE liner can lower sliding resistance, and a sealed housing can help block water, dust, grass clippings, road salt, or industrial debris.

Maintenance access changes the decision as well. A cable hidden under panels, under a vehicle, or inside a machine frame should be specified more conservatively than one that can be replaced in minutes. High-cycle controls benefit from better liners, smoother routing, and fittings that avoid side loading.

Adjust Before Replacing, but Know When Replacement Is Safer

Adjustment is reasonable when the cable is slightly slack, the housing is intact, the inner wire is smooth, and the barrel adjuster still has usable range. Begin by confirming that the housing is seated, ferrules are aligned, and the actuator or return spring moves freely without the cable attached. Then take up slack gradually and test full travel several times.

Replacement is safer when the wire is frayed, rust is visible, the housing is kinked, the jacket is cracked, or motion remains sticky after cleaning and lubrication. Safety-critical systems such as brakes, throttles, and clutches should not be pushed to the end of service life. When ordering a replacement bowden cable, match motion type, stroke, pull force, bend radius, material, liner, ferrules, end fittings, and barrel adjuster compatibility.

Conclusion

A bowden cable works by allowing the inner wire to move under tension while the outer housing stays fixed and resists compression. That simple relationship explains why routing, bend radius, cable stops, ferrules, friction, and adjustment all affect how smoothly a control system responds.

For applications that require reliable mechanical motion transfer, Dong Guan SumHo Control Cable Co., Ltd. provides control cable assemblies designed for practical use in equipment, vehicles, and machinery. Choosing the right cable construction, fittings, and housing helps reduce stiffness, improve control accuracy, and extend service life.

FAQ

Q: What does a Bowden cable do?

A: A Bowden cable transfers mechanical motion from one point to another through a flexible route, commonly controlling brakes, throttles, clutches, latches, or machine mechanisms.

Q: How does a Bowden cable work?

A: It works by pulling an inner wire through a fixed outer housing. The housing holds the path stable while the wire movement operates the connected mechanism.

Q: Can a Bowden cable push as well as pull?

A: A standard Bowden cable mainly pulls. Push-pull cables use a more rigid or reinforced core to transmit motion in both directions more reliably.

Q: Why does a Bowden cable become stiff?

A: Stiffness usually comes from tight bends, dirt, corrosion, worn liners, crushed housing, or poor routing that increases friction between the inner wire and housing.

Q: How do you adjust a Bowden cable?

A: Most systems use a barrel adjuster or threaded fitting. Increasing effective housing length removes slack, while reducing it loosens cable tension.

Q: When should a Bowden cable be replaced?

A: Replace it if the wire is frayed, rusted, sticking after lubrication, or if the housing is cracked, kinked, crushed, or no longer seats correctly.
