The topic of throttle cable vs brake cable comes up often in equipment control systems because the two parts can look similar but perform very different jobs. In lawn mowers, garden machinery, utility equipment, and other mechanically controlled systems, a throttle cable is used to regulate engine speed or power response, while a brake cable is used to transmit stopping force or holding force. If the difference between throttle cable vs brake cable is misunderstood, equipment performance, control accuracy, and safety can all be affected.
In real applications, throttle cable vs brake cable is not just a question of function. It also involves load, travel, routing, wear pattern, and replacement logic. A cable that works well for throttle control may not handle braking force, and a cable designed for braking may not deliver the smooth response expected in throttle operation.
● Throttle cable vs brake cable starts with control purpose: speed regulation versus stopping force.
● The comparison of throttle cable vs brake cable also includes load, response, routing, and durability.
● Similar appearance does not mean the two cable types are interchangeable.
● Correct replacement depends on function, dimensions, end fittings, and operating conditions.
● In custom projects, throttle cable vs brake cable should be confirmed by drawings, samples, or OEM references.

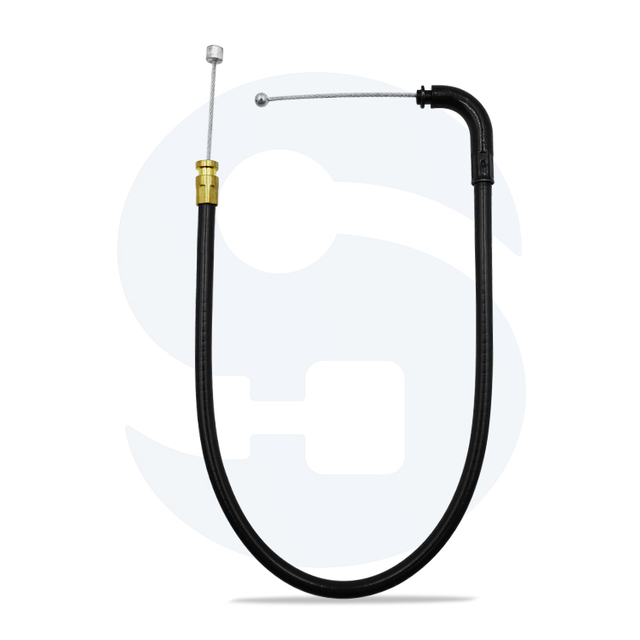

A throttle cable is a mechanical control cable that transfers movement from a lever, handle, or control point to the engine throttle mechanism. In the discussion of throttle cable vs brake cable, the throttle cable is defined by its role in adjusting engine speed, power delivery, or fuel-air response. It is designed for controlled acceleration, power adjustment, or stable engine running rather than stopping action.
Throttle operation usually depends on smooth and progressive cable movement. In many machines, the cable must respond to small input changes without sticking, lagging, or creating excessive resistance. That is why, in throttle cable vs brake cable, throttle systems are often judged by responsiveness and adjustability.
Throttle cables are widely used in lawn mowers, garden tractors, utility machines, compact engine systems, and other outdoor power equipment. In these applications, the cable connects an operator control to an engine response mechanism. This makes throttle cable vs brake cable especially relevant in machines where multiple cable systems work together.
Even though throttle cables are not braking components, their working environment can still be demanding. Outdoor exposure, repeated actuation, and narrow routing paths can all affect service life. For that reason, throttle cable vs brake cable should be compared not only by function but also by long-term operating conditions.
A throttle cable typically includes an inner wire, an outer conduit, and terminal fittings designed for stable and smooth travel. The inner wire must move with low friction so the engine responds predictably over time. In throttle cable vs brake cable, this smooth modulation is one of the most important structural differences.
Terminal shape, conduit length, and travel range also affect control feel. Small structural changes can alter how the machine responds during use. As a result, throttle cable vs brake cable is not only a functional comparison but also a design and fitment issue.

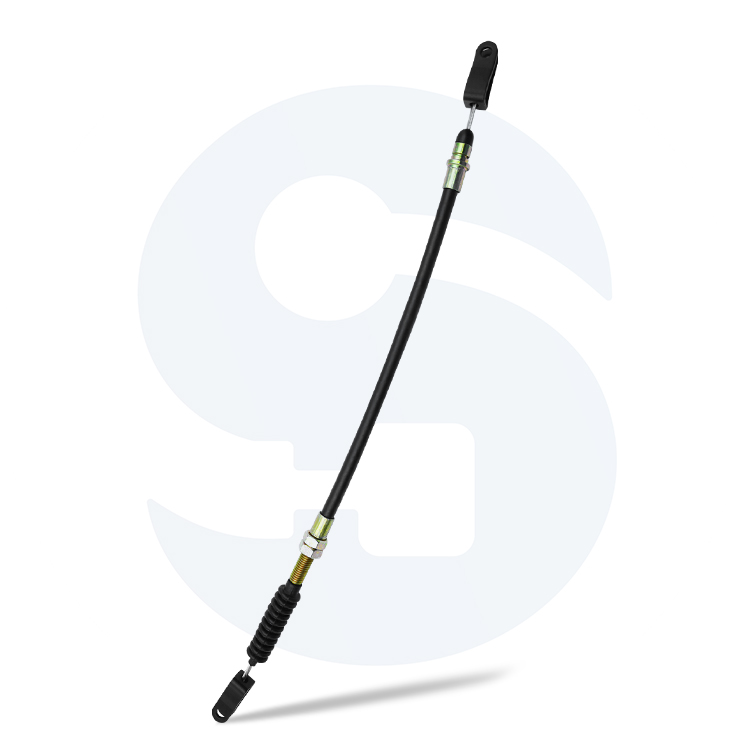

A brake cable transfers force from a lever, handle, or pedal to a braking or holding mechanism. In the context of throttle cable vs brake cable, the brake cable differs because its main purpose is to slow, stop, or hold movement instead of regulating engine output. That functional difference shapes its design priorities.
Brake systems usually require more direct and stable force transmission than throttle systems. A brake cable must engage reliably under repeated use and maintain control without excessive stretch or unstable movement. This is why throttle cable vs brake cable is often a comparison between modulation-based control and force-based control.
Brake cables are commonly used in walk-behind mowers, riding equipment, garden machines, and other systems with mechanical braking or engagement functions. In some machines, the brake cable directly activates a brake mechanism. In others, it works within a linked control system that affects blade stopping, parking hold, or drive disengagement.
Brake cables usually face more severe operating demands than throttle cables. Repeated engagement, outdoor contamination, and vibration can accelerate wear if the cable is not suited to the application. Because of this, the real difference in throttle cable vs brake cable is closely tied to reliability under load.
Brake cable reliability is closely linked to control stability and operational safety. A sticking throttle cable may affect engine response, but a failing brake cable can reduce stopping performance or holding force. In any serious analysis of throttle cable vs brake cable, this difference cannot be ignored.
Inner wire strength, conduit resistance, and terminal security all influence brake function. Even if a cable looks similar to another, that does not mean it is suitable for braking. This is one more reason why throttle cable vs brake cable must be judged by control role, not appearance.
The clearest point in throttle cable vs brake cable is function. A throttle cable manages engine response and power adjustment. A brake cable is intended to slow, stop, or hold movement through a braking system or related linkage.
This contrast changes how each cable is designed and selected. Throttle cables focus more on smooth travel and precise modulation, while brake cables focus more on stability and dependable force transfer. In that sense, throttle cable vs brake cable is a comparison between adjustment control and stopping control.
Load is another major factor in throttle cable vs brake cable. Throttle cables often work under lighter and more controlled loads because they transmit adjustment rather than stopping force. Brake cables usually face higher direct load because they participate in braking or holding action.
These force conditions affect material choice, internal structure, and expected service life. A cable suitable for throttle control may not perform well under repeated brake loads. Therefore, throttle cable vs brake cable should always include load requirement as a central selection factor.
Throttle cables usually need controlled, progressive movement across the full adjustment range. Brake cables generally require more immediate engagement and stronger feedback once the control is actuated. This difference in operating feel is a core part of throttle cable vs brake cable.
Tension behavior is also important. Slack, drag, or unstable return can weaken throttle control, while stretch or poor force transfer can reduce braking effectiveness. That means throttle cable vs brake cable must be judged in real operating conditions, not only by listed size.
Routing conditions can further highlight the difference in throttle cable vs brake cable. Throttle cables often need to keep movement smooth through bends and compact spaces. Brake cables may be less sensitive to fine modulation, but they usually need stronger long-term resistance to repeated force.
Wear patterns reflect these operating differences. A throttle cable may show stiffness, delayed response, or uneven control feel. A brake cable may show force loss, drag, or lower braking consistency. For that reason, throttle cable vs brake cable should also be evaluated through actual wear behavior.
Comparison Point | Throttle Cable | Brake Cable |
Primary role | Regulates engine speed or control response | Transmits stopping or holding force |
Typical load | Lighter, more modulated | Higher, more direct |
Response expectation | Smooth and progressive | Immediate and stable |
Main performance concern | Precision and control feel | Force reliability and stopping consistency |
Common failure effect | Poor speed regulation | Reduced braking performance |
One reason throttle cable vs brake cable causes confusion is that both are mechanical cable assemblies with an inner wire, conduit, and end fittings. At a quick glance, they may seem close enough to substitute. In practice, however, visual similarity is not enough.
Appearance does not reveal force rating, travel suitability, or control purpose. Two cables with similar length may behave very differently under load. That is why throttle cable vs brake cable should always be approached through function and specification.
Using a throttle cable in place of a brake cable can lead to unstable braking response, poor force transmission, or early wear. Using a brake cable in a throttle position may create rough control feel, high resistance, or poor engine modulation. These risks show that throttle cable vs brake cable is a real operational distinction.
Improper substitution can also create fitment issues. Even when a cable seems to fit the machine, differences in travel, conduit stiffness, or terminal geometry may lead to poor performance after installation. That is why interchangeability should never be assumed in throttle cable vs brake cable.
A custom cable is often the better choice when no standard replacement clearly matches the original equipment setup. Confusion around throttle cable vs brake cable often appears when a machine has been modified, the original OEM reference is missing, or an older repair used a non-standard part.
In these cases, drawings, samples, and measured dimensions can confirm the correct cable type before production. This makes the throttle cable vs brake cable decision more accurate and reduces the risk of choosing the wrong replacement.
The first step is to identify whether the cable is intended for throttle control or brake control. In throttle cable vs brake cable, function should guide every later decision, including load expectation, movement style, and replacement criteria. If the function is misunderstood, even a dimensionally similar cable may not work properly.
The control point on the machine usually provides the best clue. A cable linked to engine speed adjustment is usually a throttle cable, while a cable linked to stopping, holding, or engagement is generally a brake cable. This makes function the most reliable starting point in throttle cable vs brake cable.
After function is confirmed, measure overall length, conduit length, effective travel, and end fitting type. In the context of throttle cable vs brake cable, these details determine whether the replacement fits both mechanically and functionally. An approximately correct cable may still create installation stress or unstable control.
End fittings are especially important because they define the mechanical connection to levers, actuators, or brake mechanisms. Even within the same equipment family, different models may use different terminal styles. That means throttle cable vs brake cable often comes down to exact fitment rather than broad category alone.
Outdoor use, vibration, moisture, dirt, and repeated movement cycles all affect cable life. A durable replacement should be selected according to the real operating environment. In throttle cable vs brake cable, outdoor durability is important for both, although brake cables may face greater consequence when wear affects stopping reliability.
The cable should also match routing path and motion frequency. Tight bends, debris exposure, and repeated actuation can all increase wear when the cable structure is not properly matched. This is another reason why throttle cable vs brake cable should be treated as a system-level decision.
Item to Confirm | Why It Matters |
Cable function | Determines whether the application is throttle or brake |
Overall length | Affects installation reach |
Conduit length | Influences usable travel |
Effective stroke | Determines control range or brake engagement |
End fittings | Ensures correct mechanical connection |
Routing path | Affects friction and wear |
OEM number or sample | Improves replacement accuracy |
A standard replacement may be suitable when the cable function is clear, the dimensions match the original part, and the terminal style fits the equipment design. In such cases, throttle cable vs brake cable can be resolved through accurate fitment confirmation rather than full custom development.
Even then, production consistency still matters. A cable that matches on paper but varies in terminal position or travel can still create installation problems. So standard replacement works best when throttle cable vs brake cable has already been technically verified.
Custom production becomes more suitable when the original cable is unavailable, the machine has non-standard routing, or the application requires a special fitting arrangement. In these cases, throttle cable vs brake cable goes beyond general category and depends on exact movement, load, and mounting geometry.
This approach is especially practical for outdoor equipment repair, specialized machinery, and OEM-related work. Samples and measured drawings make it easier to define the correct cable type and structure. As a result, throttle cable vs brake cable becomes a precise specification issue rather than a trial-and-error purchase.
When requesting a quotation or technical review, it is best to provide equipment type, cable function, overall length, conduit length, effective travel, and end fitting details. Photos of the installed path or an old sample can improve accuracy further. In practice, throttle cable vs brake cable becomes much easier to confirm when the application data is complete.
With that information, the manufacturer can determine whether the project needs a standard replacement or a custom build. This reduces mismatch risk and makes the confirmation process more efficient.
The difference between throttle cable vs brake cable goes far beyond name or appearance. Throttle cables are used for engine response and controlled adjustment, while brake cables are used for stopping force, holding force, and stable mechanical engagement. Their differences in function, load, response, travel, and wear pattern mean they should never be treated as interchangeable without careful confirmation.
For equipment control systems used in lawn, garden, utility, and outdoor machinery, correct cable selection depends on application function, dimensions, end fittings, and operating conditions. In replacement and custom projects involving throttle cable vs brake cable, Dong Guan SumHo Control Cable Co., Ltd. can be considered as a manufacturing source for technical review, sample-based matching, and cable production according to equipment requirements.
No. Throttle cable vs brake cable reflects a real difference in control purpose, force demand, response style, and replacement logic. The two cable types may look similar, but they perform different roles in equipment control systems.
That is not recommended without technical confirmation. In throttle cable vs brake cable, similar length does not guarantee suitable load performance, travel behavior, or stopping reliability. A visually similar cable may still fail to meet braking requirements.
You should confirm cable function, overall length, conduit length, effective travel, and end fitting type. In many cases, the issue behind throttle cable vs brake cable is resolved by careful measurement rather than guesswork. An OEM number or old sample can improve accuracy.
