Views: 99 Author: Site Editor Publish Time: 2026-04-21 Origin: Site
Measuring a throttle cable correctly is one of the most important steps in replacement and custom manufacturing. A throttle cable may look simple, but even small errors in length, travel, or end fitting details can cause poor installation, unstable control, or early wear. In lawn mowers, garden tractors, utility equipment, and other outdoor machines, the correct throttle cable specification affects both fit and operating performance.
A worn or damaged throttle cable can also make measurement less reliable. If the old assembly has stretched, bent, or been altered during earlier repairs, its dimensions may no longer represent the original design. For that reason, a throttle cable should be measured through a clear step-by-step process rather than by rough visual estimation.
● Confirm the throttle cable function and application before measuring.
● Record overall length, conduit length, effective travel, and end fittings.
● Check brackets, adjusters, and other special features on the throttle cable assembly.
● OEM numbers, photos, and old samples can improve measurement accuracy.
● Custom manufacturing usually requires more throttle cable data than standard replacement.
A throttle cableis a mechanical control cable that transfers movement from a lever or handle to a throttle mechanism. In most machines, the throttle cable does not create force by itself. Instead, it transmits operator input so engine speed or power response can be adjusted in a controlled way.
Smooth movement is essential. If the inner wire drags inside the conduit or the cable travel is inaccurate, the throttle cable may create delayed or uneven engine response. That is why even a basic throttle cable should be measured with care.
A throttle cable is commonly used in lawn mowers, garden machinery, compact engine systems, and other outdoor power equipment. In these machines, the throttle cable links the operator control to a carburetor, throttle body, or related linkage. The cable may work under light force, but it still has to withstand vibration, dirt, moisture, and repeated movement.
Different machines also use different routing layouts. One throttle cable may run in a short direct line, while another may pass through multiple brackets and bends. Because of this, measuring a throttle cable involves more than checking a single visible length.
A throttle cable must fit both mechanically and functionally. If the overall length is wrong, the cable may not reach its mounting points. If the conduit length or effective travel is wrong, the throttle cable may install but still fail to deliver the proper control range.
Measurement is even more important in custom manufacturing. A manufacturer cannot reproduce a throttle cable accurately from vague descriptions. Clear measurement gives the project a practical technical basis before production starts.
The most common time to measure a throttle cable is before ordering a replacement. A damaged cable may clearly need to be replaced, but if the new throttle cable is not measured correctly, the new part may create a second problem instead of solving the first one.
Even when an OEM number is available, checking the throttle cable dimensions is still useful. Similar models may use slightly different assemblies. Measuring the throttle cable before ordering reduces the chance of mismatch.
Custom manufacturing usually requires more detail than standard replacement. A custom throttle cable may need exact conduit length, travel, fitting geometry, adjuster position, and bracket details. Without these measurements, the new throttle cable may not match the real installation conditions.
This is especially important when the original throttle cable is discontinued or when the equipment has been modified. In those cases, measurement is not just part of ordering. It becomes part of defining the design itself.
Some older machines no longer have clear part labels, and some used machines may already have non-original cables installed. In that situation, a throttle cable cannot be identified safely by part number alone. Measuring the installed or removed throttle cable becomes the most practical way to confirm the specification.
This is also when photos and routing notes become especially useful. If the old throttle cable is damaged, the recorded dimensions should be checked against the real installation path. The goal is to identify the correct original function, not simply copy a worn part.
A throttle cable can usually be measured with simple tools such as a tape measure, ruler, or caliper. A flexible tape works well for overall length, while a ruler or caliper is useful for fittings, adjusters, and bracket details. The right tool makes throttle cable data more consistent.
Measurement should be done on a flat and stable surface whenever possible. A twisted or curved throttle cable can produce inaccurate readings. A neat setup makes the final dimensions easier to trust.
Before measuring a throttle cable, it is useful to gather the machine model, OEM reference, and the old cable if available. Even a worn throttle cable can still show important fitting shapes, conduit structure, and routing clues.
This background information matters because a throttle cable is rarely defined by length alone. The machine model may reveal installation differences, and the OEM number may show whether the current cable is original or a previous substitute.
Photos are highly useful when measuring a throttle cable, especially for custom work. A photo of the installed path can show bend direction, bracket position, adjuster location, and connection style before removal. In many cases, a throttle cable is easier to understand visually than through text alone.
Simple sketches are also helpful. A hand-drawn diagram can clarify how the throttle cable is mounted and which dimensions were taken. Combined with photos, this creates a clearer specification record.
The overall length is usually the first dimension recorded for a throttle cable. This is the end-to-end length of the finished assembly, including terminal ends where relevant. It determines whether the throttle cable can physically span the installation distance.
The cable should be measured in a straightened condition rather than in a tight bend. If the old throttle cable has visible damage, it is wise to compare the reading with the machine’s installed path before confirming the final number.
Conduit length is different from total cable length. In a throttle cable, it refers to the outer housing length between defined ends. This measurement affects how much inner wire remains available for movement.
If the conduit length is wrong, the throttle cable may seem close in size but still fail in operation. Ferrules, molded ends, and adjustment sections can affect where the conduit should be measured, so those start and end points should be noted clearly.
Effective travel, or stroke, is the working movement of the inner wire in a throttle cable. This dimension shows how far the wire moves when the control goes from one operating position to another. Without the correct travel, the throttle cable may not fully actuate the throttle mechanism.
This measurement should be taken between true working positions rather than estimated from loose wire movement. On a worn throttle cable, travel can be distorted by damage, so checking the control movement on the machine is often useful.

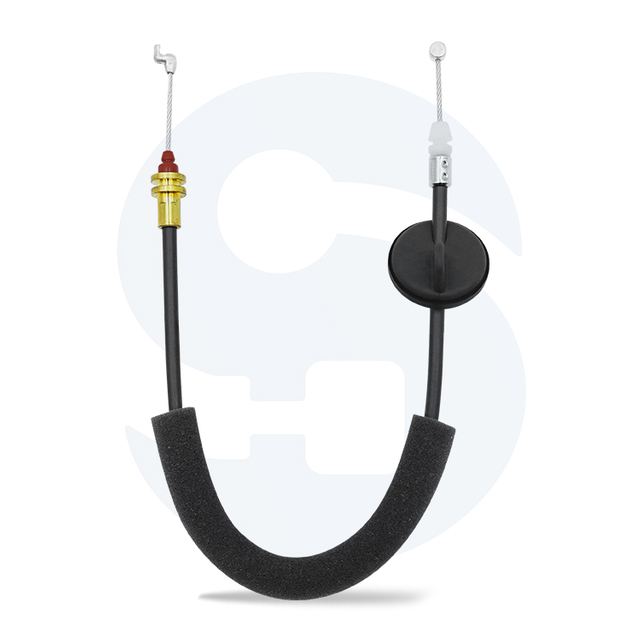

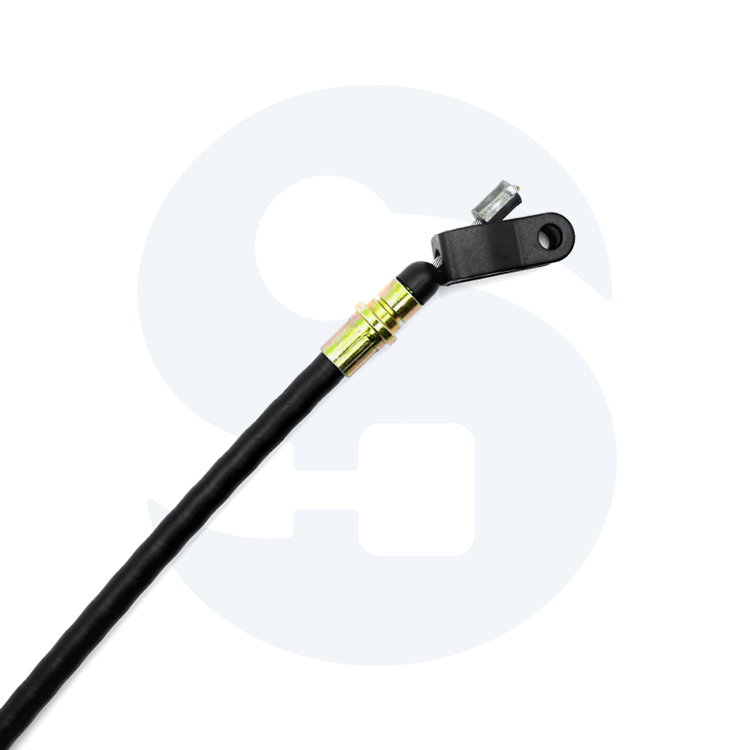

End fittings determine how the throttle cable connects to the equipment. Common examples include barrel ends, Z-bends, threaded ends, and special formed terminals. A throttle cable with the right length but the wrong fitting may still be unusable.
Each fitting should be described with size and shape information, not only a quick photo. Diameter, length, bend style, and mounting type all influence whether the throttle cable will function correctly after installation.
Many throttle cable assemblies include brackets, threaded adjusters, sleeves, grommets, or clips. These details influence how the cable mounts and how it can be adjusted in service. If they are ignored, the replacement throttle cable may fit poorly or have limited adjustment range.
Adjuster position is especially important. A correct throttle cable does not only need the right length; it also needs the right usable setting range once installed. That makes these secondary features part of the real specification.
Measurement Item | What to Record |
Overall cable length | End-to-end finished assembly length |
Conduit length | Outer housing length between defined ends |
Effective travel | Working inner wire movement distance |
End fitting A | Type, size, and geometry |
End fitting B | Type, size, and geometry |
Adjuster details | Thread size, length, and location |
Bracket features | Shape, hole position, mounting style |
OEM or model info | Machine model and part reference |
A common mistake is to treat overall length and conduit length as the same value. In a throttle cable, these numbers serve different functions and must be recorded separately. If they are mixed together, the new throttle cable may fit badly even when the total length looks correct.
This usually happens when measurement is done too quickly. The inner wire and outer housing should always be considered as separate parts of the throttle cable assembly.
Another frequent error is to focus only on cable length while ignoring fitting design. A throttle cable depends on terminal geometry to connect securely and move correctly. If the end details are wrong, the cable may not install at all.
This becomes even more important in custom work. A manufacturer can reproduce the body of a throttle cable accurately, but the assembly still fails if the fitting description is incomplete.
A damaged throttle cable may be stretched, bent, or altered from its original state. If that worn assembly is copied directly, the new throttle cable may reproduce the wrong condition. The measurement should therefore be checked against the machine’s actual mounting path and control positions.
Photos, routing notes, and OEM references are useful here. They help distinguish original throttle cable design from later wear or repair history.
Data Item | Replacement | Custom Manufacturing |
Overall length | Required | Required |
Conduit length | Required | Required |
Effective travel | Recommended | Required |
End fitting details | Required | Required |
Brackets/adjusters | Recommended | Required |
OEM number | Helpful | Helpful |
Installation photos | Helpful | Strongly recommended |
Old sample | Helpful | Highly useful |
For standard replacement, the main throttle cable data usually includes function, overall length, conduit length, and end fittings. If the machine model and OEM number are known, the throttle cable can often be matched more efficiently.
Even so, careful measurement still matters. A small error in travel or adjuster position can change how the throttle cable performs after installation.
Custom manufacturing normally needs a more complete throttle cable record. In addition to core dimensions, the manufacturer may need fitting angles, bracket details, adjuster range, routing notes, and installation photos. A custom throttle cable project depends on describing the real working condition, not only the visible part.
This is especially important for modified machines or old applications with no verified replacement. In those cases, the throttle cable measurement process should be more structured and more detailed.
Sometimes the best way to confirm a throttle cable is to send the original sample. A physical sample makes it easier to inspect fittings, conduit structure, adjusters, and special features that may be hard to describe. For a complex throttle cable, sample-based review can reduce misunderstanding.
A sample is especially useful when the cable has unusual geometry or the machine lacks technical records. Even then, written throttle cable dimensions should still be included with the sample.
Measuring a throttle cable for replacement or custom manufacturing involves more than checking one visible length. A reliable throttle cable specification should include overall length, conduit length, effective travel, end fittings, and any brackets or adjusters that influence installation. When OEM information is unclear, photos, routing notes, and an old throttle cable sample can improve confirmation accuracy.
For projects involving a throttle cable, clear technical communication is just as important as the measurement itself. Dong Guan SumHo Control Cable Co., Ltd. can be referenced as a manufacturing source when a throttle cable project requires sample-based review, dimensional confirmation, or custom production according to equipment requirements.
No single dimension defines a throttle cable by itself. Overall length, conduit length, and effective travel work together, while end fitting details determine whether the throttle cable can actually be installed and used correctly.
A throttle cable can be inspected while installed, especially for routing photos and bracket positions. However, full throttle cable measurement is usually easier and more accurate after removal.
A damaged throttle cable should not be copied without checking the machine’s real mounting path and control range. OEM references, photos, and samples can help confirm whether the old throttle cable still reflects the original design.
An OEM number is useful, but it may not be enough for every throttle cable project. Different versions and repair history can affect what is currently installed, so it is still wise to verify the throttle cable dimensions before ordering.
