How Do Push-Pull Control Cables Work in Automotive Systems?

Modern vehicle architectures rely heavily on electronic drive-by-wire systems today. Yet, they still require reliable, tactile mechanical linkages for critical fail-safes and direct physical connections. Actuators and sensors cannot entirely replace the robust feedback of traditional mechanical components. Transferring linear motion accurately through complex, tight-tolerance vehicle routing presents significant engineering challenges. Engineers must navigate intricate pathways under the hood without introducing excessive friction or lost motion. A poorly routed line easily leads to binding or failure over time.

We will explore the mechanics, applications, and specification requirements of these essential components thoroughly. You will discover a definitive, engineering-focused guide to evaluating and selecting the correct automotive push pull control cable assemblies for production. This guide will clarify your procurement strategy from early prototyping stages down to final mass assembly.

Key Takeaways

• Mechanical Principle: Push-pull cables transmit linear force in both directions (compression and tension) using a sliding inner core within a fixed, reinforced outer conduit.
• Application Specificity: Different automotive systems (transmissions, throttles, latches) require distinct load capacities, travel lengths, and bend radii.
• Evaluation Focus: Proper specification relies on calculating efficiency loss over routing bends, selecting low-friction materials (e.g., PTFE liners), and adhering to SAE/ISO automotive standards.
• Procurement Strategy: Sourcing decisions should prioritize manufacturers with robust environmental cycle-testing capabilities and custom engineering support.

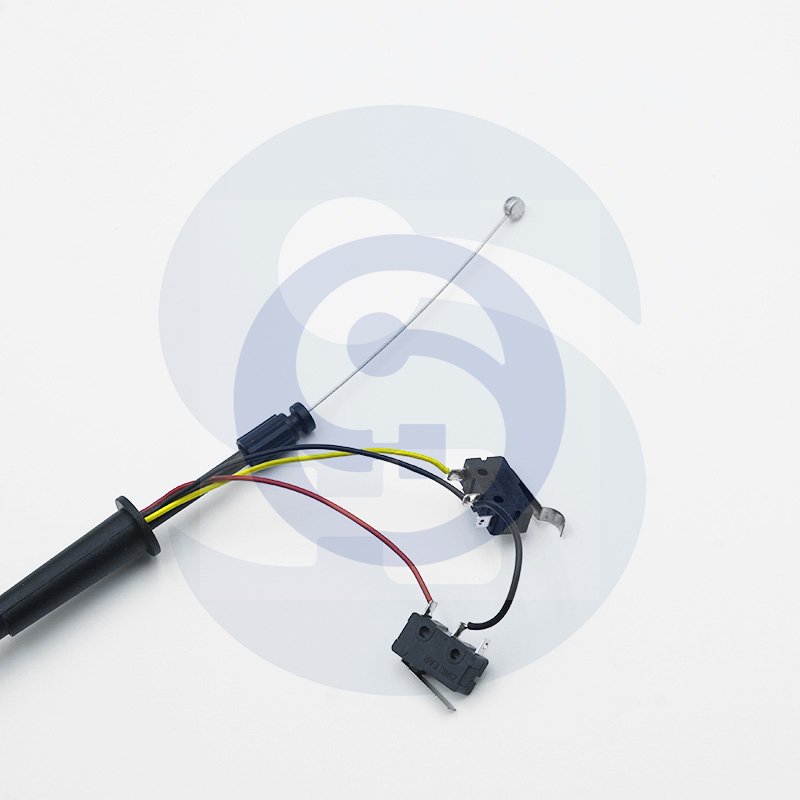

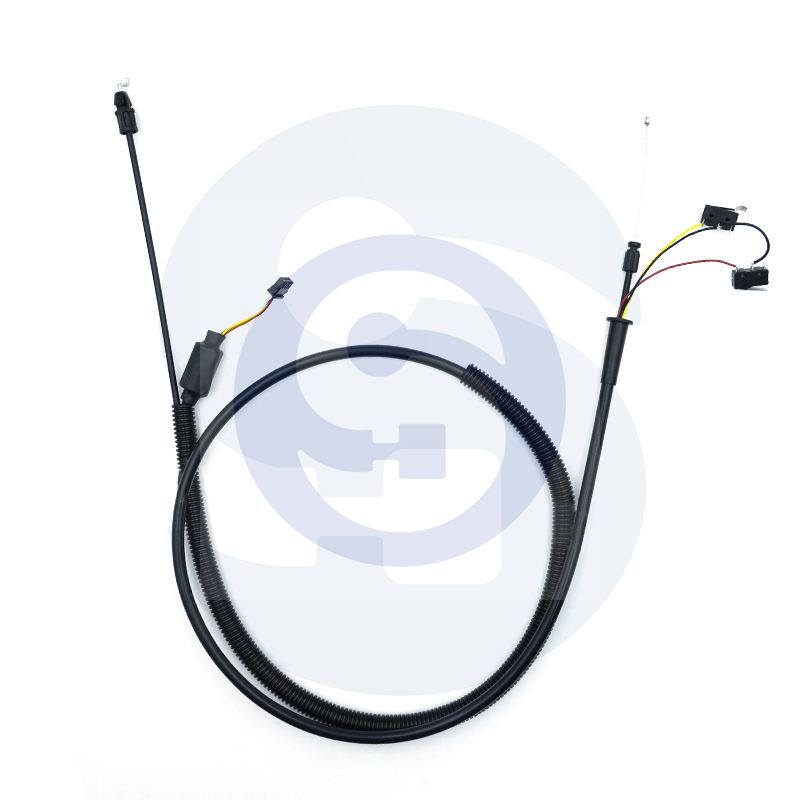

The Mechanics: Core Architecture of an Automotive Push Pull Cable

The inner core serves as the primary transmission element in the assembly. It handles both tension when pulling and compression when pushing. Engineers typically choose between solid wire and stranded wire designs. Solid wire offers excellent compression strength for high push loads. It resists buckling under heavy pressure. Stranded wire provides superior flexibility for routing through tight spaces. They must match the core type to the specific actuation requirement of the vehicle system.

The outer conduit acts as a rigid, protective casing. It maintains a fixed path for the inner wire. It also resists crushing under heavy compression loads. Manufacturers build this casing using multiple specialized layers to ensure structural integrity. An inner liner provides a smooth sliding surface. A structural wire wrap adds vital hoop strength. Finally, a protective outer jacket seals the assembly from environmental damage.

Managing internal friction prevents premature wear and sluggish response. Self-lubricating PTFE or Teflon liners play a crucial role here. They create a naturally slippery boundary layer between the core and conduit. Manufacturers also inject specialized silicone or lithium greases inside during assembly. These lubricants minimize actuation effort across wide temperature ranges. You must specify appropriate lubrication to ensure long-term reliability and driver comfort.

Hardware selection determines how well the system integrates. End fittings attach the core directly to automotive pedals or levers. Common options include clevises, ball joints, and threaded rods. Clevises offer strong, pivoting connections for heavy transmission levers. Ball joints allow multi-axis movement to accommodate slight angular misalignment. Threaded rods provide precise length adjustment during vehicle assembly on the factory floor.

Critical Applications for the Automotive Control Cable

Shift-by-cable systems demand absolute precision in modern vehicles. Both automatic and manual transmissions rely heavily on these linkages. They require minimal backlash to ensure accurate detent positioning inside the gearbox. Drivers expect crisp, tactile feedback when changing gears. A sloppy shifter mechanism compromises vehicle safety and driver confidence. Therefore, engineers specify highly rigid conduits for these roles to eliminate unwanted flex.

Throttle controls prioritize high flexibility and immediate response. The routing often snakes through crowded engine bays. Low-friction materials guarantee instantaneous pedal acceleration. More importantly, they ensure a guaranteed return-to-idle when the driver lifts off the pedal. Sticking throttles pose severe safety hazards. You must evaluate routing paths carefully to prevent binding around hot engine components.

Parking brake systems endure massive tension loads continuously. When engaged, they hold the entire vehicle weight on steep inclines. This requires exceptional tensile strength and safety-critical durability. The assemblies face constant stress and harsh undercarriage environments. Stranded wire cores excel here because they handle extreme pulling forces reliably. Heavy-duty outer jackets protect them from flying road debris.

Vehicles use secondary mechanical actuations extensively throughout the cabin and chassis. Hood releases, trunk latches, and HVAC vent controls need reliable operation. Seat adjustment mechanisms also depend on compact linkages. In these applications, engineers prioritize space-saving routing over high load capacity. These systems utilize smaller diameter lines to navigate tight cabin spaces smoothly. Flexibility becomes the primary engineering focus for these secondary systems.

Engineering Evaluation: How to Specify the Right Cable Assembly

Proper specification begins with load capacity analysis. You must establish maximum push and pull limits for the application. Compression forces require stiffer inner wire diameters to prevent buckling. Tension forces rely purely on the tensile strength of the metal core. The conduit rigidity must also support these applied forces without flexing. A mismatched system will fail prematurely under peak operating loads.

Calculating bend radius directly impacts routing efficiency. Every bend adds internal friction to the mechanical system. You calculate the total degrees of bend across the entire routed path. A high number of bends reduces the total efficiency of motion transfer. Follow these best practices when evaluating bend radii:

• Keep routing paths as straight as possible from end to end.
• Maximize the radius of any necessary curves to reduce wall friction.
• Avoid consecutive sharp turns in tight engine compartments.
• Calculate friction multipliers for every 90-degree bend in the layout.
• Use bulkhead fittings to stabilize the conduit before major turns.

Evaluating permissible slop ensures precision and tactile quality. Lost motion occurs when the inner core moves before engaging the load. Shifter applications have extremely low tolerance for backlash. You must specify exact clearance margins between the inner core and the PTFE liner. Tight tolerances improve tactile feedback but may increase friction slightly. Engineers balance these variables during the prototyping phase.

You must define the exact linear movement distance required for actuation. We call this the travel or stroke length. It dictates how far the inner core must extend and retract. Engineers match this metric to appropriate end-fitting geometries. If the stroke length exceeds fitting capabilities, the mechanism will bottom out. This damages the internal components and causes system failure.

Material Selection and Automotive Compliance Standards

Material science dictates long-term performance in the field. We commonly compare stainless steel against galvanized steel for the core wire. Stainless steel provides superior corrosion resistance for exposed undercarriage routing. Galvanized steel offers a cost-effective solution for standard durability in protected cabins. You select the metal based on the expected environmental exposure and project budget constraints. Heavy-duty trucks often mandate full stainless steel constructions.

The outer jacket protects the internal structural layers from external threats. Engineers select polymers based on distinct operating environments. PVC offers good general-purpose protection for interior cabins. High-density polyethylene resists severe abrasion along exposed chassis rails. Nylon withstands intense under-hood high temperatures near exhaust manifolds. Choosing the wrong polymer leads to melting, cracking, or catastrophic moisture ingress.

Candidate assemblies must meet strict automotive compliance standards. You should verify adherence to relevant ISO and SAE specifications. These frameworks govern mechanical linkages in mass production vehicles. They dictate minimum cycle life, burst strength, and material flammability. Following these guidelines ensures safety and regulatory compliance across different global markets. Non-compliant materials expose manufacturers to severe liability risks.

Vehicles operate in incredibly harsh conditions globally. You must evaluate protections against aggressive chemical ingress. The assemblies will face engine oil, fuel spills, and corrosive road salts daily. Moisture penetration causes internal freezing during winter months, locking the mechanism entirely. Extreme thermal cycling from -40°C to +150°C tests material stability. Superior elastomer sealing boots prevent these contaminants from entering the conduit ends.

Sourcing and Implementation Risks in Automotive Production

Procurement teams balance off-the-shelf components against custom designs. Commercial Off-The-Shelf (COTS) parts work perfectly for early prototyping. They speed up initial proof-of-concept testing and validation. However, mass production usually requires custom-engineered assemblies. Custom designs optimize specific routing paths, reduce overall vehicle weight, and streamline factory installation. Transitioning from COTS to custom requires careful supplier collaboration.

Buyers must verify a manufacturer's validation and testing capabilities. You need suppliers who conduct rigorous in-house testing. Ask for cycle testing data proving longevity over a million actuations. Require load-to-failure testing reports for safety-critical brake applications. Ensure they possess environmental chambers to simulate extreme weather conditions. When you procure an Automotive Push Pull CableAutomotive Control Cable, evaluate your supplier's testing lab thoroughly.

We see several common implementation failures in mass production. Improper anchoring remains a frequent issue on assembly lines. Unsecured lines allow conduit flex, absorbing the actuation energy instead of transferring it. Specifying too tight of a bend radius causes immediate internal binding. Thermal degradation occurs when routings run too close to unshielded exhaust pipes. Identifying these physical risks early prevents costly recalls later.

Proper integration requires clear communication between design engineers and assembly technicians. Factory workers must handle the conduits carefully during installation. Kinking the casing permanently damages the internal liner. You should implement strict handling guidelines on the factory floor. Provide visual routing diagrams to prevent accidental twists or pinch points. Strong quality control during installation guarantees optimal component lifespan.

Conclusion

Specifying an automotive push-pull linkage requires careful engineering balance. You must weigh direct load requirements against restrictive routing constraints inside the vehicle. Material durability ultimately determines how well the system survives harsh under-hood environments. Choosing the correct polymers and metals prevents costly system failures.

We encourage engineers and procurement managers to act proactively. Map your exact push, pull, and routing data immediately. Gather these physical metrics before engaging a tier-1 or tier-2 manufacturer. This preparation guarantees an efficient prototyping phase and successful custom assembly design.

FAQ

Q: What is the difference between a push-pull cable and a standard pull-only cable?

A: A standard pull-only design relies on tension and collapses if pushed. A push-pull version features a heavily reinforced outer conduit. This structural rigidity prevents the assembly from buckling under compression. The inner core also utilizes a stiffer solid wire to transmit pushing forces effectively.

Q: How do you calculate the minimum bend radius for an automotive control cable?

A: You calculate it using standard industry formulas relating the conduit diameter to bend tolerance. Generally, the minimum bend radius should be at least ten times the outer diameter of the conduit. Tighter curves exponentially increase internal friction and permanently deform the internal liner.

Q: What causes an automotive push pull cable to bind or fail prematurely?

A: Binding typically stems from severe contamination or improper routing. Dirt, moisture, and road salts breach damaged seals and corrode the core. Degraded internal lubrication increases sliding friction significantly. Additionally, excessive thermal damage from nearby exhaust components can melt the outer jacket and restrict movement.

Q: Can push-pull cables be used as primary transmission shifters in heavy-duty vehicles?

A: Yes, they function exceptionally well in heavy-duty commercial vehicles. However, they require highly specialized, armored conduit specifications. Engineers must specify high-load capacity cores and heat-resistant jackets. These heavy-duty assemblies ensure precise gear engagement while surviving intense vibrations and continuous mechanical stress.
